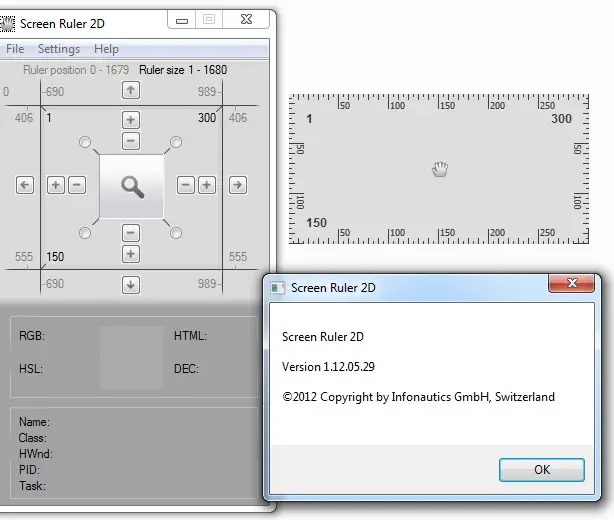

Screen Ruler 2D 1.12.05.29

Screen Ruler 2D is an on-screen pixel ruler which measures in 2 dimensions (horizontal and vertical). Furthermore, an integrated color picker shows the color under the selected corner mark in different color systems and the window information panel provides technical information about the underlying window (3 in 1). Additionally, a built-in magnifier and the direct positioning aids allow to position the ruler pixel accurately simply and fast.

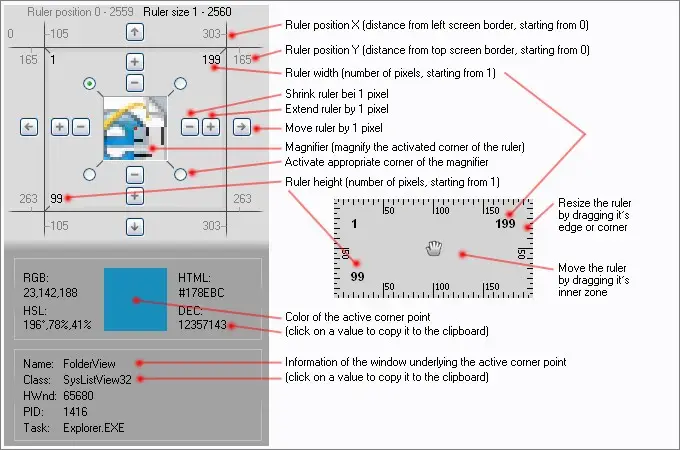

Features

Translucent 2-dimensional screen ruler wich can be adjusted horizontal and vertical in size and positioned anywhere on the screen.
At each edge of the rectangular screen ruler scalable guides are available.
Display of width and height of the adjusted screen ruler (pixel).
Display of the positions of all ruler edges with regard to the desktop coordinates.
Positioning aids (buttons) enabling to move or extend/shrink the ruler by one pixel to each side.
Positioning of ruler by buttons or cursor keys (right, left, top, down).
Extending of ruler by buttons or cursor keys (shift + right, left, top, down).
Shrinking of ruler by buttons or cursor keys (ctrl + right, left, top, down).
Magnifier for accurate positioning of the screen ruler at each of the four corners.
Color picker at the selected corner of the screen ruler in four different color systems: RGB Values (Red/Green/Blue), HSL Values (Hue/Saturation/Lightness), HTML (hexadecimal Web colors), DEC (decimal color value).
Display of further information regarding the window under the active corner mark: name and class of window, window handle, process ID, relating task.
Setting to keep window always on top.
Setting to hide/show tooltips.
Short guide providing information about the most important control elements.
Manual in PDF format.
Installation program installs automatically the 32 or 64 Bit version of the program according to the relating operating system.



OS : Microsoft Windows™ XP/Vista/7, 32 or 64 bit
Language : English

Home Page - http://www.infonautics.ch/
